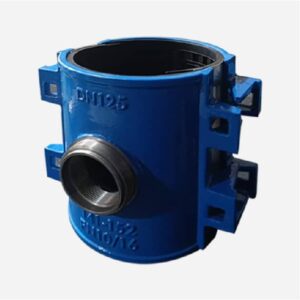

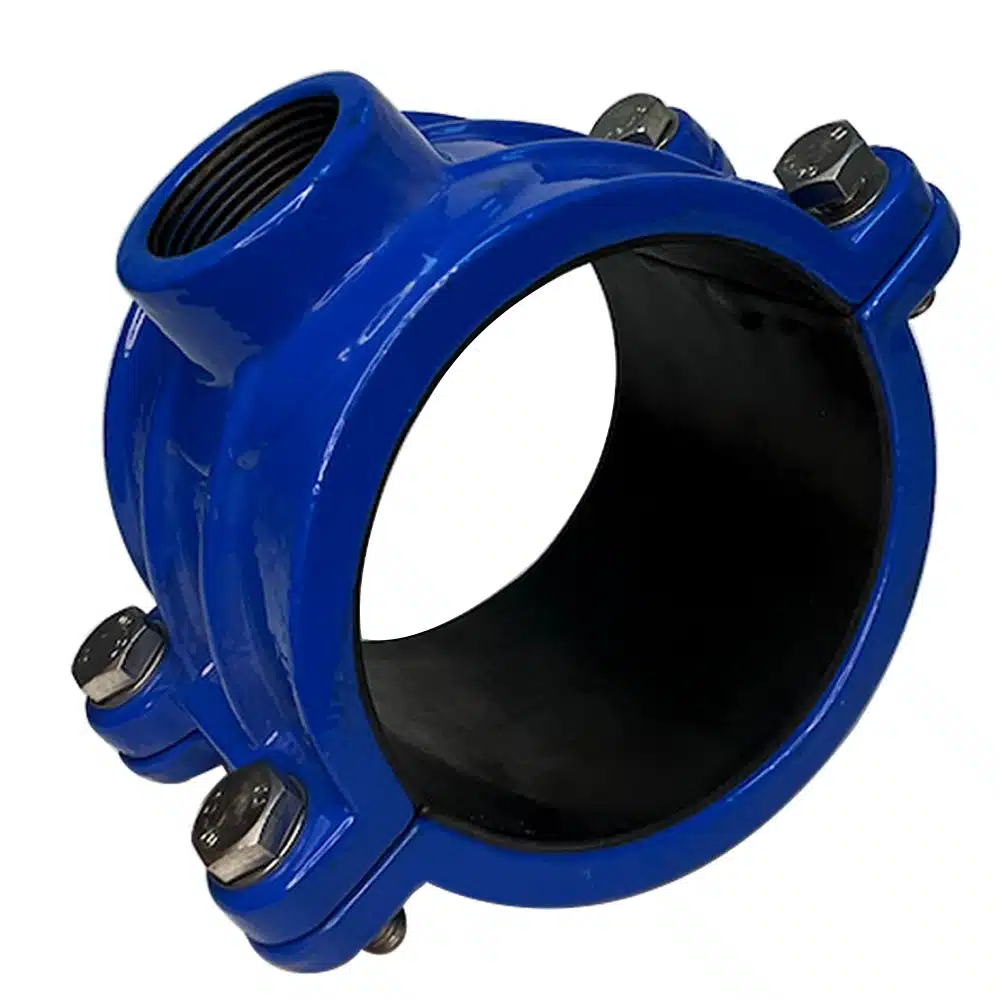

Pipe saddles
Pipe saddle, also known as a saddle clamp, is used to create a branch connection on a pipe. It wraps around the main pipe and provides an outlet for a secondary pipe to connect.The common outlet is thread outlet or flange outlet.
SPECIFICATION
ā Saddle standard:comply with EN545
ā Coating standard:EN30677
ā Test standard: EN12266-1
ā Working pressure and Temperature
ā size OD50 to OD400,Working pressure PN10/PN16
ā Temperature from -10ā to 120ā for EPDM gasket
ā Temperature from -10ā to 82ā for NBR gasket
ā Connection for PVC and HDPE pipe
ā Suitable for portable water, neutral liquids and sewage
ā WRAS,ACS,DVGW,NSF approved
VIDEO
PHOTOS
Pipe saddle Production
Third Party Inspection

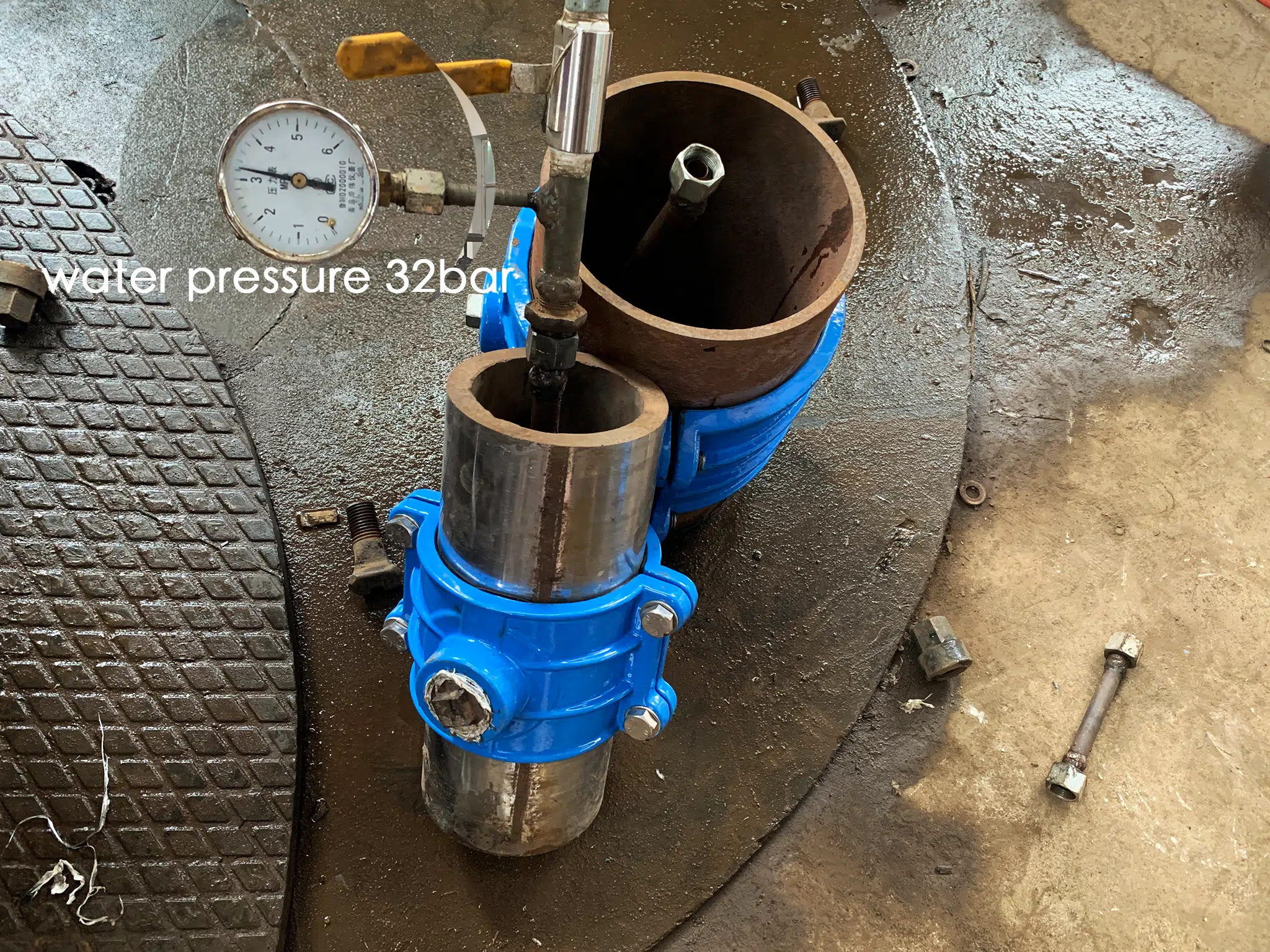

Pressure Test for Pipe Saddle

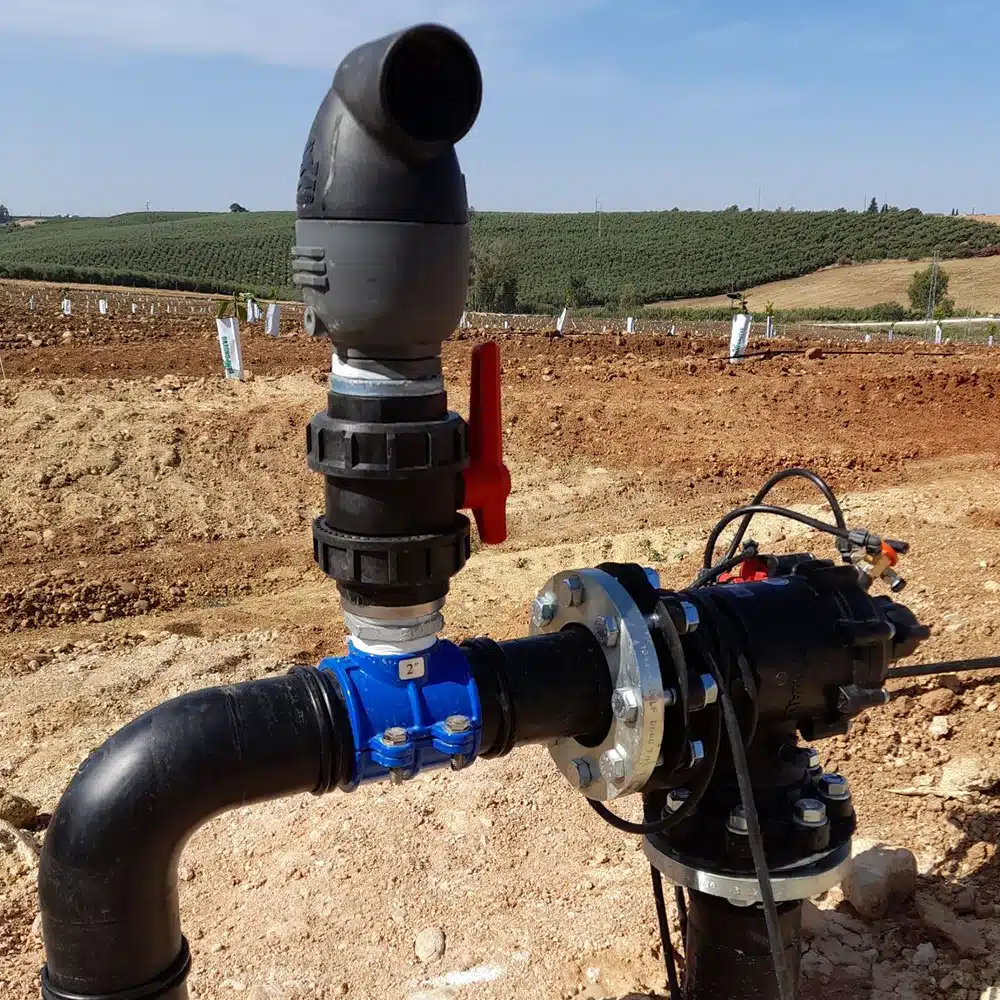

USE
A pipe saddle, also known as a saddle clamp, is used to create a branch connection on a pipe.
It wraps around the main pipe and provides an outlet for a secondary pipe to connect.
Here are some common uses:
1. Creating Branch Lines
_
It allows for the addition of branch lines to an existing pipeline without cutting the main pipe.
2. Leak Repairs
_
Used in repairing leaks in pipes by clamping over the damaged section.
3. Connecting Different Sizes
_
Facilitates the connection between pipes of different diameters.
The saddle clamp ensures a secure and sealed connection,
which is essential in preventing leaks and maintaining the integrity of the piping system.
