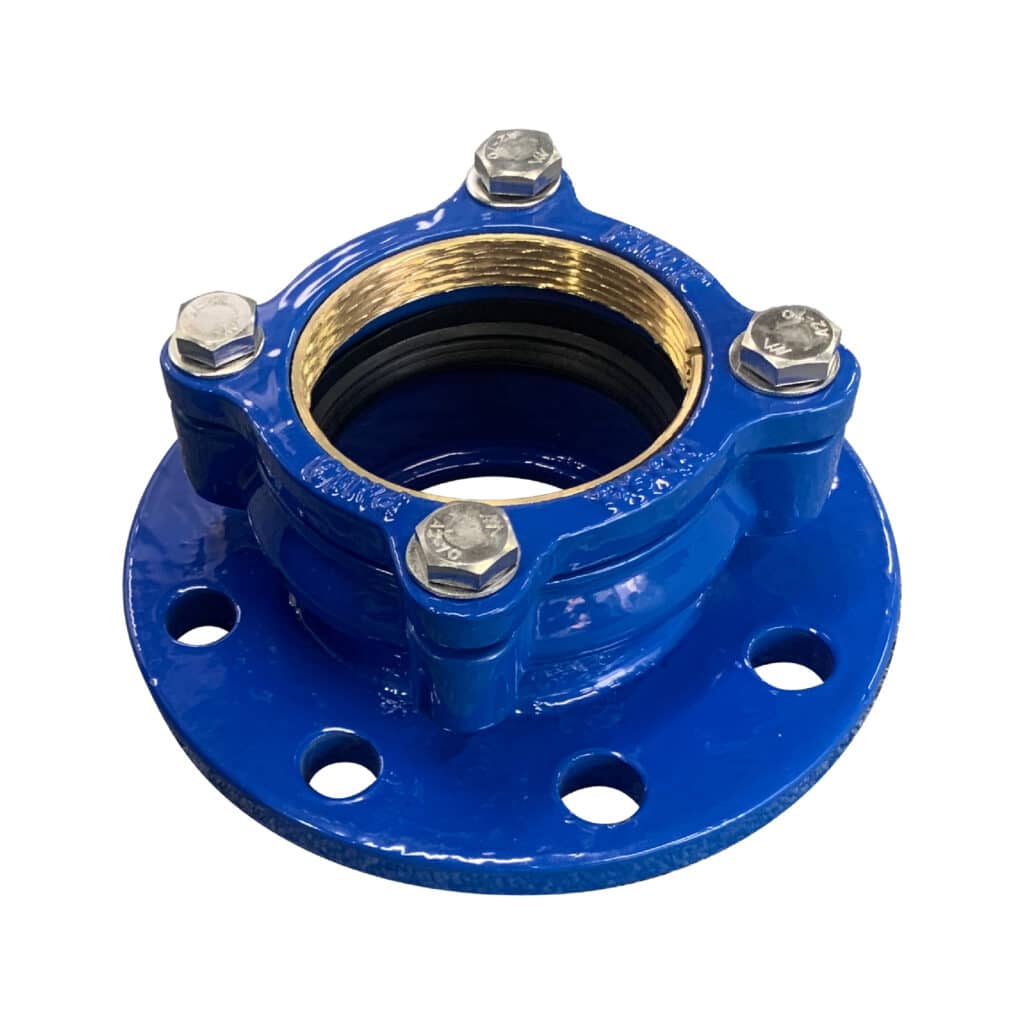

Flange Adaptor for HDPE Pipe
Flange adaptor for HDPE (High-Density Polyethylene) pipes is a fitting used to connect HDPE pipes plain end to flanged pipes, valves, pumps, or other equipment. The adaptor typically consists of a flange body, a gland, a compression ring, a gasket and tie rods to ensure a secure and leak-proof connection.
Flange adaptor for HDPE pipe must have a restraint device, and this restraint device can be a restrained ring or a restrained wedge, the restrained ring or wedge is generally made of metal material, because HDPE pipe is easy to slide or loose at the joint due to its smooth surface and flexibility, the restraint device can fix the pipe and prevent the pipe from moving during operation. Moreover, HDPE pipe will have thermal expansion and contraction when the temperature changes, the restraint device can help offset the impact of this change on the joint connection and maintain the stability of the connection.
Specification
Restrained flange adaptor standard:comply with EN545
Flange standard EN1092-2
Coating standard:EN30677
Test standard: EN12266-1
Working pressure and Temperature
size DN50 to DN300,Working pressure PN10/PN16
Temperature from -10℃ to 120℃ for EPDM gasket
Temperature from -10℃ to 82℃ for NBR gasket
Usage
Connection for HDPE pipe
Suitable for potable water, neutral liquids and sewage
WRAS,ACS,DVGW,NSF approved
Video
Advantage
The flange adaptor used to connect HDPE pipe has the following outstanding advantages compared with hot melt connection and electrofusion connection
Easy installation: the installation process of flange adaptor is relatively simple, without special equipment and complex operation, just tighten the bolts to complete the connection, saving time and labor cost.
Easy to disassemble and maintain: flange adaptor connection is easy to disassemble, suitable for pipeline systems that need to be maintained and replaced frequently. In contrast, once the hot melt and electrofusion connections are completed, disassembly is difficult and requires cutting and reconnection.
High flexibility: flange adaptor connection is suitable for connecting various types of pipelines and equipment, and can easily realize the connection between HDPE pipe and metal pipe, valve, pump and other equipment, with higher adaptability.
Suitable for large diameter pipeline: for large diameter pipeline, flange adaptor connection is more practical than hot melt and electrofusion. Hot melt and electrofusion connection of large diameter pipeline require large equipment and high precision operation, while flange adaptor connection is relatively simple.
Good vibration resistance: flange adaptor has certain elasticity and seismic resistance, can absorb vibration and impact in the pipeline system, and maintain the stability of connection.
Convenient site construction: under the limited conditions of site construction, flange connection can be operated in a smaller space, while hot melt and electrofusion connection require sufficient operation space and power support.
Although hot melt and electrofusion connections have the advantages of seamless connection and high sealing in some applications, flange adaptor has obvious advantages in installation convenience, maintenance convenience, adaptability and on-site construction. Therefore, in large diameter HDPE pipeline system requiring flexible connection and easy maintenance, flange adaptor is a very practical connection mode.
