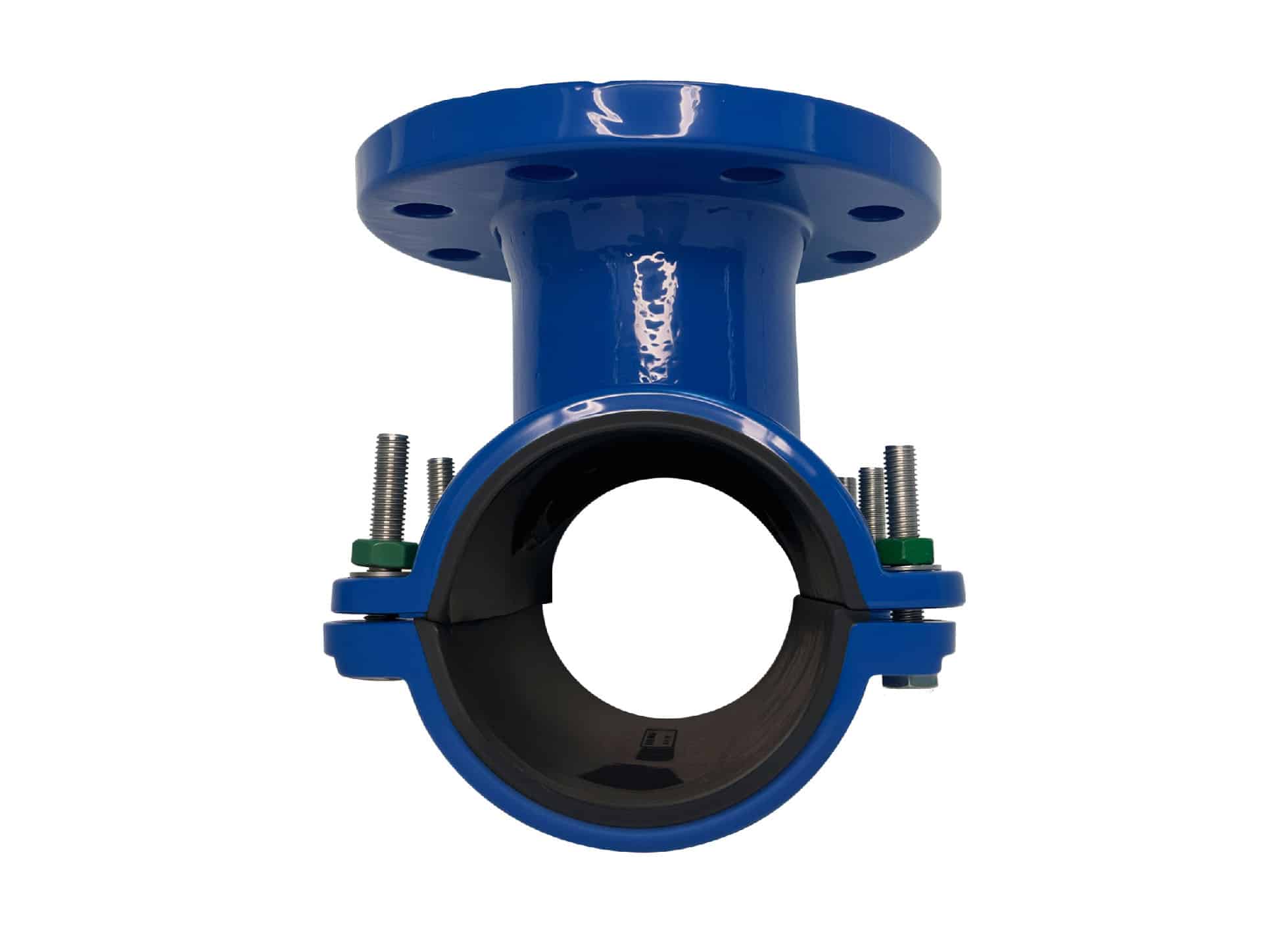

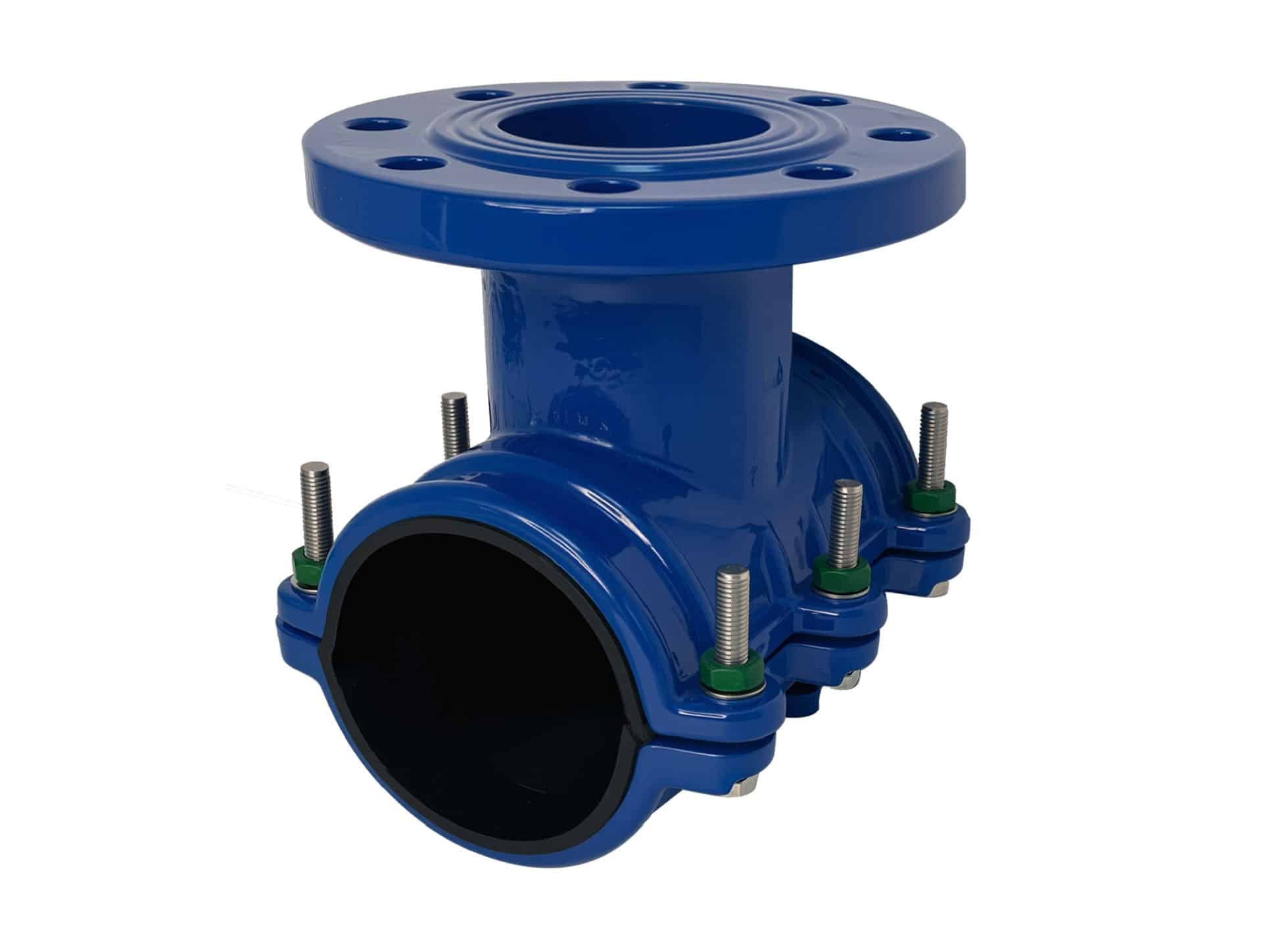

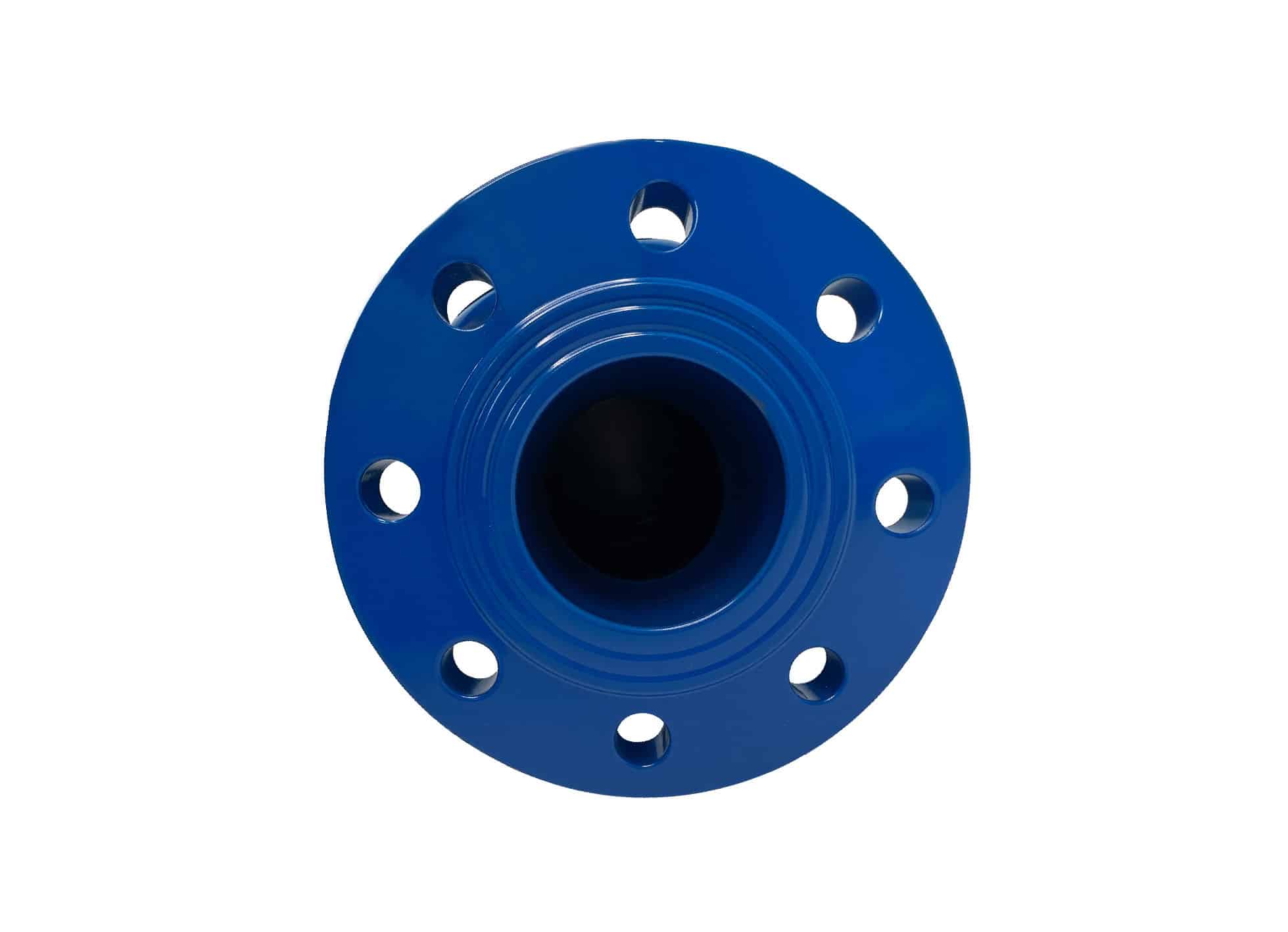

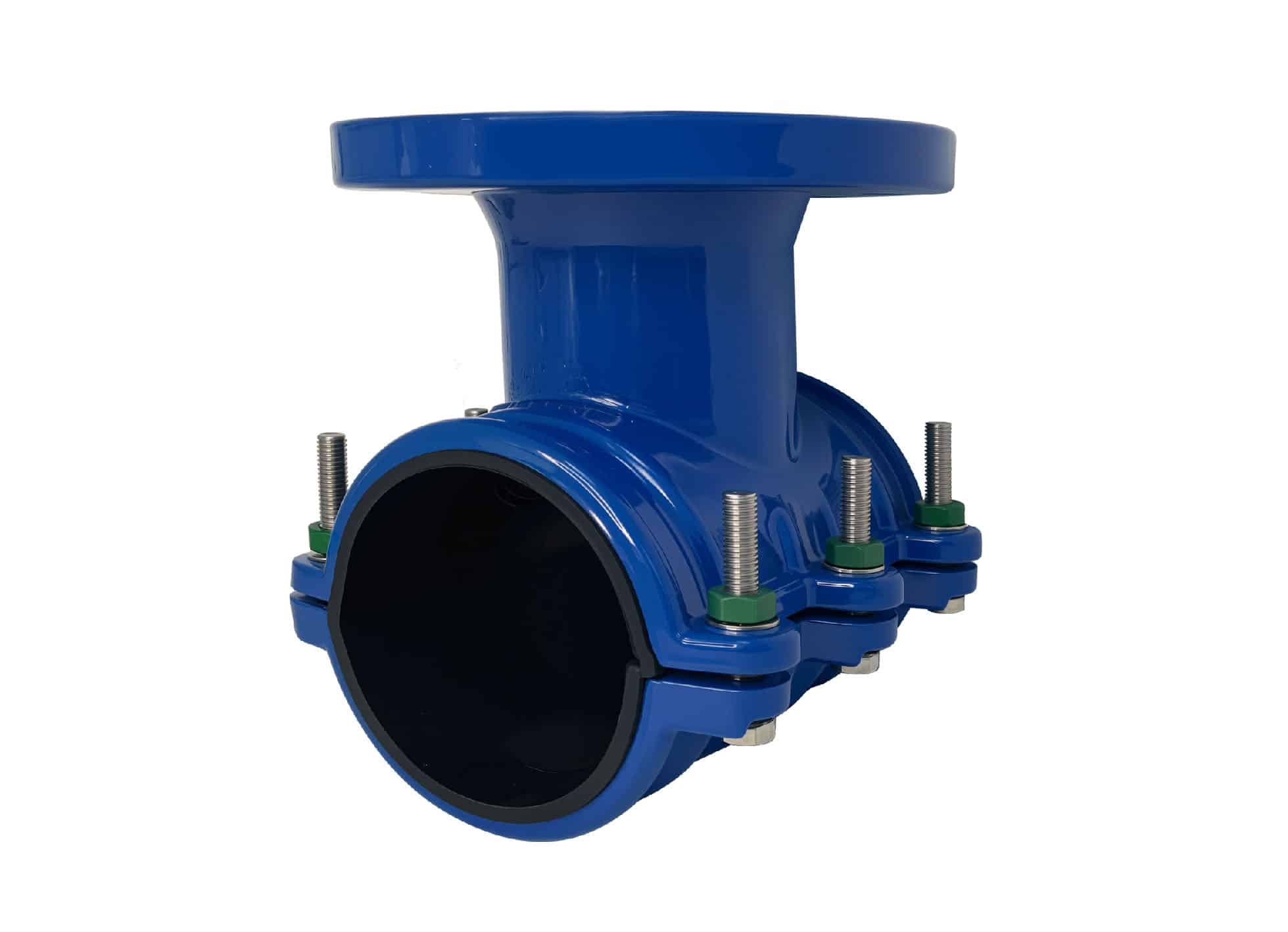

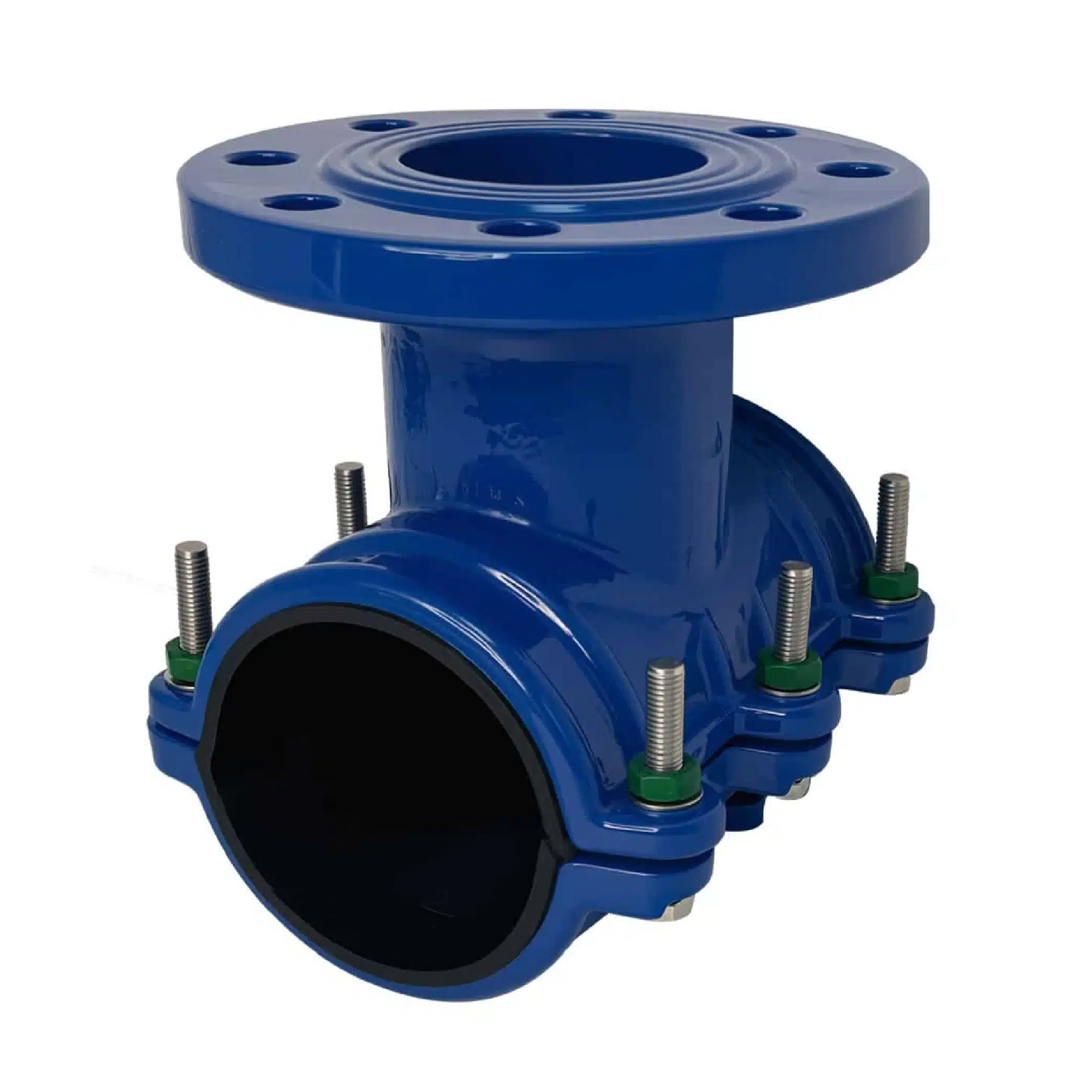

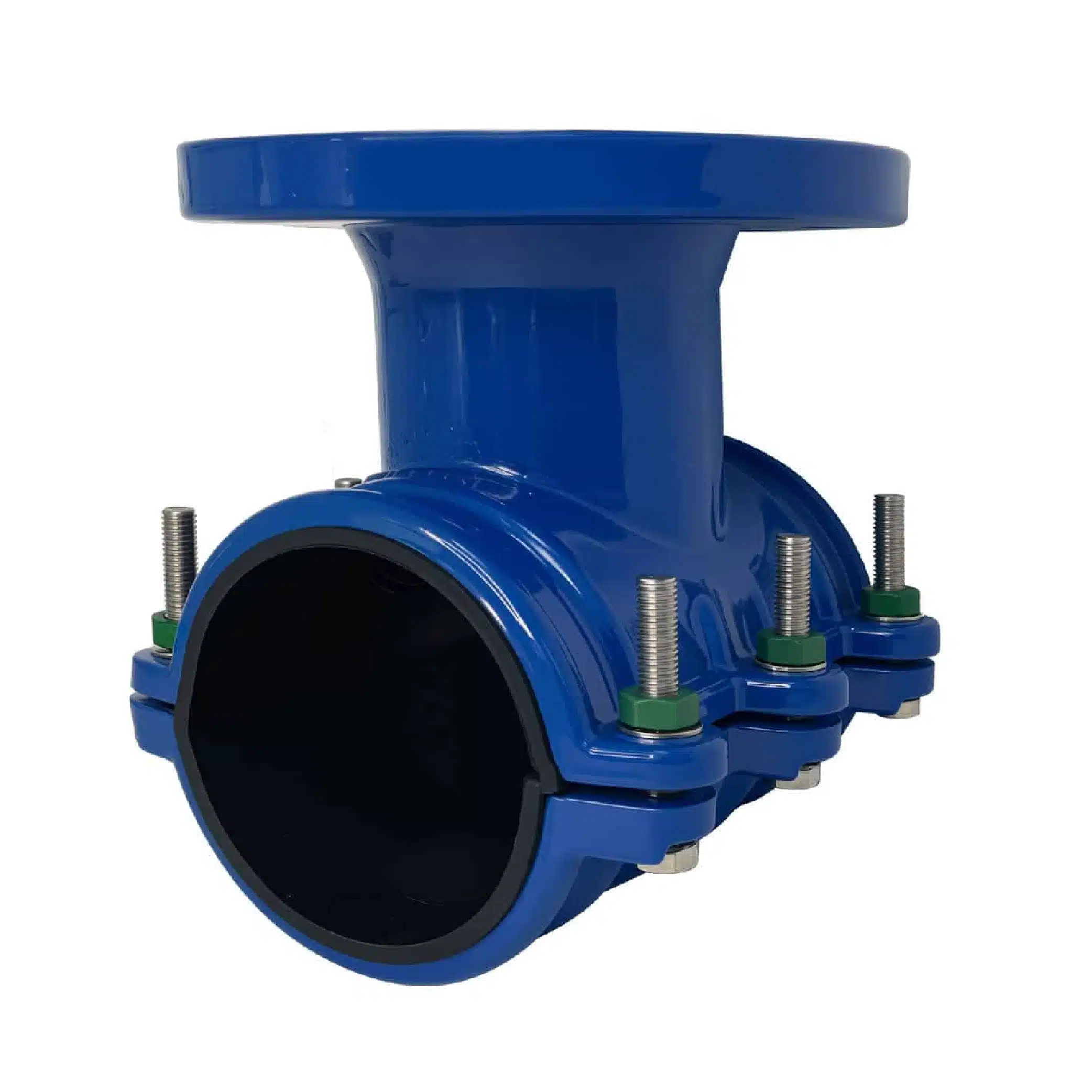

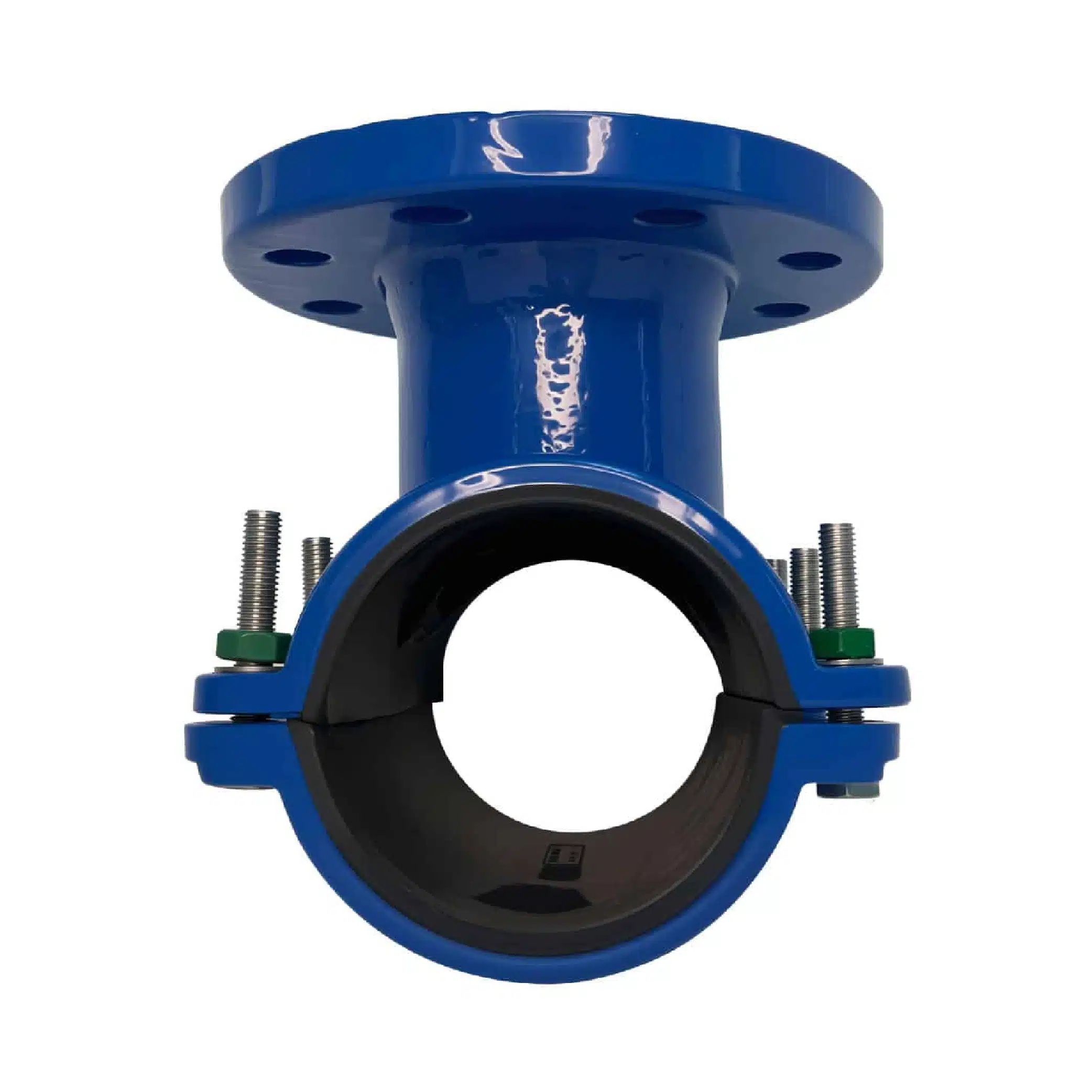

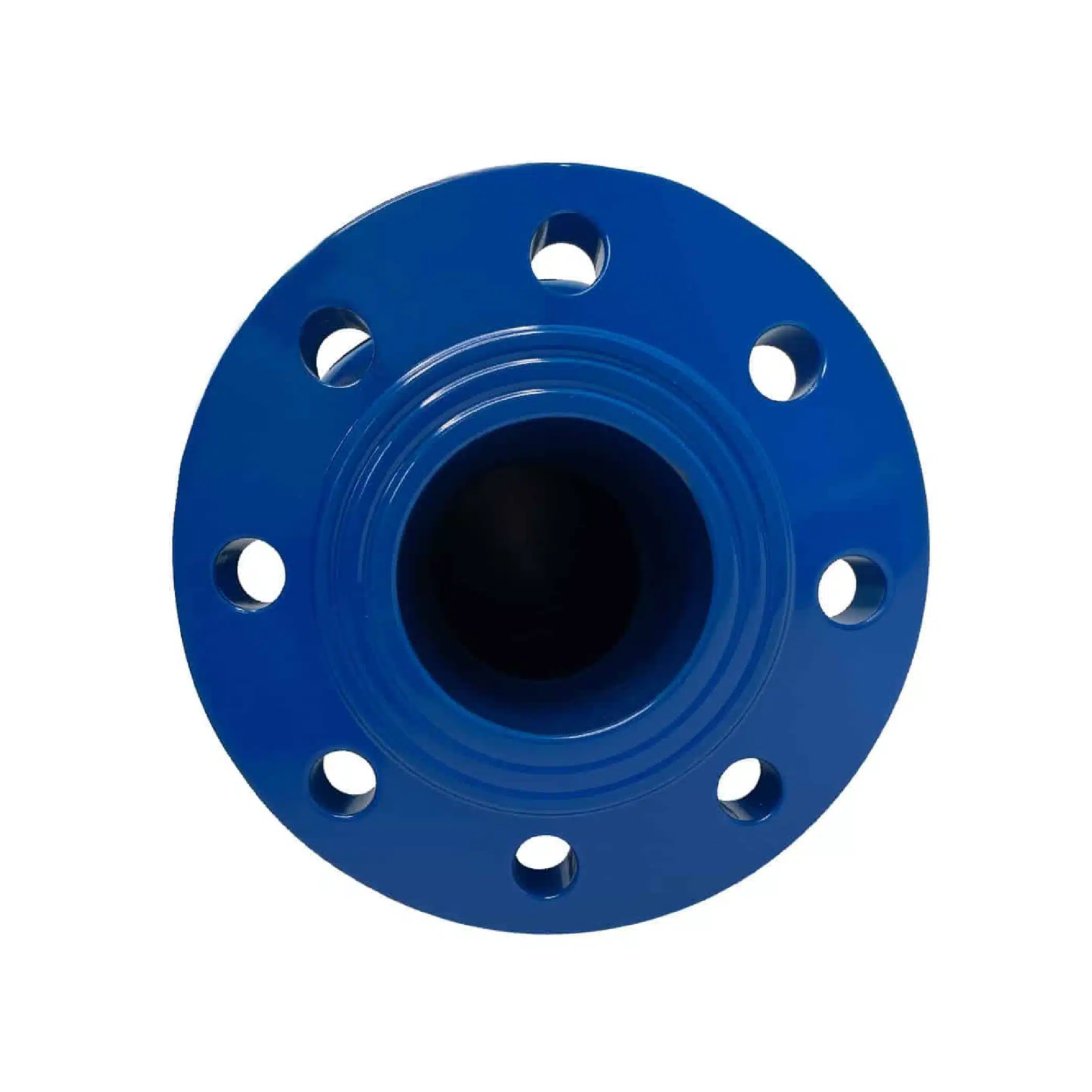

Saddle Tap Clamp for PVC Pipe

Saddle Tap Clamp For PVC Pipe Is Tap Saddle Which Can Split Water From Main PVC Pipe To Branch Pipe, Outlet Can Be Thread Or Flange Connection.

specification

Drilling Without Pressure

Saddle Standard:Comply With EN545

With Fix Flange ,Flange Standard:EN1092-2

Coating Standard:EN30677

Test Standard: EN12266-1

Working Pressure And Temperature

Size DE63 To DE 400, Working Pressure PN10 Or PN16

Temperature From -10℃ To 120℃ For EPDM Gasket

Temperature From -10℃ To 82℃ For NBR Gasket

Connection For PVC And HDPE Pipe

Suitable For Potable Water, Neutral Liquids And Sewage

WRAS,ACS,DVGW,NSF Approved

Drawing

Material

No.	Parts Name	Material	Standard
1	Uper Part	Ductile iron	EN1563
2	Lower Part	Ductile iron	EN1563
3	Gasket	EPDM	EN681-1
4	Bolts	Stainelss steel or Carbon Steel	ISO898-1
5	Washer	Stainelss steel or Carbon Steel	ISO898-1
6	Nut	Stainelss steel or Carbon Steel	ISO898-1

Dimension(unit mm)

DN	PVC/PE pipe OD	Flange Size	Flange Dimesion PN10	Flange Dimesion PN10	Flange Dimension PN16	Flange Dimension PN16	A	L	H
	DE	d	D	K	D	K
50	63	50	165	125	165	125	150	120	90
65	75	50	165	125	165	125	145	130	95
80	90	50	165	125	165	125	180	145	100
80	90	65	185	145	185	145	180	145	100
80	90	80	200	160	200	160	180	145	100
100	110	50	165	125	165	125	200	160	100
100	110	65	185	145	185	145	200	160	100
100	110	80	200	160	200	160	200	160	100
100	110	100	220	180	220	180	200	160	100
125	125	50	165	125	165	125	230	180	120
125	125	80	200	160	200	160	230	180	120
125	140	50	165	125	165	125	230	180	110
125	140	65	185	145	185	145	230	180	110
125	140	80	200	160	200	160	230	180	110
125	140	125	250	210	250	210	230	180	110
150	160	50	165	125	165	125	230	170	90
150	160	80	200	160	200	160	230	190	110
150	160	100	220	180	220	180	230	200	120
150	160	125	250	210	250	210	230	210	120
180	180	50	165	125	165	125	230	210	120
200	200	50	165	125	165	125	230	215	115
200	200	80	200	160	200	160	230	225	125
200	200	100	220	180	220	180	230	230	130
200	200	125	250	210	250	210	230	230	130
200	200	150	285	240	285	240	230	230	130
200	200	200	340	295	340	295	230	230	130
225	225	50	165	125	165	125	230	230	120
225	225	80	200	160	200	160	230	235	125
225	225	100	220	180	220	180	230	235	125
225	225	125	250	210	250	210	230	235	125
225	225	200	340	295	340	295	230	240	130
250	250	50	165	125	165	125	300	230	105
250	250	80	200	160	200	160	300	240	115
250	250	125	250	210	250	210	300	250	125
250	250	150	285	240	285	240	300	250	125
250	250	200	340	295	340	295	300	260	130
250	250	250	400	350	400	355	300	270	140
280	280	80	200	160	200	160	300	255	115
280	280	100	220	180	220	180	300	260	120
280	280	150	285	240	285	240	300	265	130
300	315	50	165	125	165	125	300	300	125
300	315	80	200	160	200	160	300	305	130
300	315	100	220	180	220	180	300	310	135
300	315	125	250	210	250	210	300	320	140
300	315	150	285	240	285	240	300	320	140
400	400	50	165	125	165	125	300	365	160
400	400	80	200	160	200	160	300	365	160
400	400	125	250	210	250	210	300	365	160
400	400	200	340	295	340	295	300	365	160
