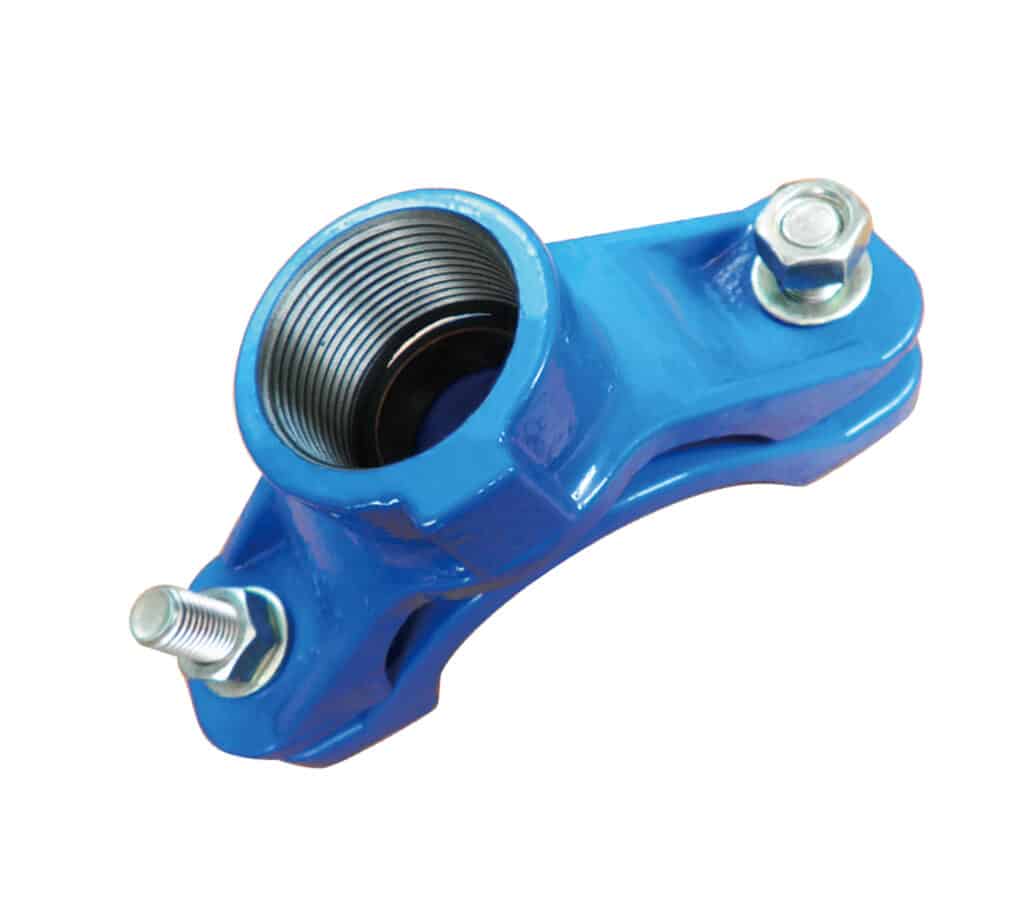

Wide Range Saddle Clamp
Wide range saddle clamp is a type of saddle clamp designed to accommodate a broader range of pipe outside diameter. Unlike standard saddle clamps, which are typically suited for specific pipe outside diameters, wide-range saddle clamps can be adjusted to fit various pipe outside diameter, offering greater flexibility in their application. They are commonly used in plumbing and irrigation systems to create a secure connection or to branch off from a main pipeline.
Wide range saddle clamps is designed for ductile iron, steel, PVC,AC etc popular pipes, one saddle can be used on many different pipe only if the pipe OD is in our saddle clamp designed range, very economical and can reduce your stock quantity.
Drawing
Material
Item | Part Name | Material |
---|---|---|
1 | Body | Ductile iron |
2 | Gasket | EPDM |
3 | Bolts | Dacromet coated carbon stee |
4 | Washers | Dacromet coated carbon stee |
5 | Nuts | Dacromet coated carbon stee |
Dimension
Pipe Size | A | B | G | OD | MXL |
---|---|---|---|---|---|
DN100 | 210 | 40 | 3/4"-2" | 108-128 | M14X70 |
DN125 | 236 | 40 | 3/4"-2" | 130-150 | M14X70 |
DN150 | 266 | 40 | 3/4"-2" | 159-180 | M14X70 |
DN200 | 320 | 45 | 3/4"-2" | 215-236 | M14X70 |
DN250 | 372 | 45 | 3/4"-2" | 266-288 | M14X70 |
DN300 | 422 | 45 | 3/4"-2" | 314-336 | M14X70 |
